Nangudi box usb c ribbon cable consistent for DB-25 connector

Nangudi box usb c ribbon cable consistent for DB-25 connector

Nangudi box usb c ribbon cable consistent for DB-25 connector
  • Nangudi box usb c ribbon cable consistent for DB-25 connector
  • Nangudi box usb c ribbon cable consistent for DB-25 connector
  • Nangudi box usb c ribbon cable consistent for DB-25 connector
  • Nangudi box usb c ribbon cable consistent for DB-25 connector
  • Nangudi box usb c ribbon cable consistent for DB-25 connector
  • Nangudi box usb c ribbon cable consistent for DB-25 connector
  • Nangudi box usb c ribbon cable consistent for DB-25 connector
  • Nangudi box usb c ribbon cable consistent for DB-25 connector
  • Nangudi box usb c ribbon cable consistent for DB-25 connector
  • Nangudi box usb c ribbon cable consistent for DB-25 connector

Nangudi box usb c ribbon cable consistent for DB-25 connector

Model Number
NGD-010
Place Of Origin
Guangdong,China
Capacity
About 3000 pcs per day
MOQ
1000 PCS
Certifications
RoHS, REACH, UL
Payment
Paypal , Western Union, T/T
Shipment
Express (EMS, TNT, UPS, FEDEX, DHL), Air ship, Ocean ship, etc
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. Nangudi usb c ribbon cable is manufactured with high-grade components and other materials sourced from reliable vendors. NGD branded wire harness and cable assembly have been ISO certified
2. The product is extensively used in various industries. NGD branded wire harness and cable assembly can be delivered within 7 days in the soonest
3. The product will not be delivered until it is assured to be pf the high quality. NGD branded wire harness and cable assembly are easy to assemble and replace
4. The product has passed the strict quality inspection of the authoritative third parties. NGD branded wire harness and cable assembly are exported to the US, Europe, Australia, Canada and Asia


/  Product Parameters


  Parameters


Used For】Display screen
Connector Type】DB-9P male, 2.54mm*10 pin box header
Cable Type】UL2651#28AWG/10P
Material】PVC, tinned copper
Production Process】Cutting wire, crimping, electrical logging, inspection, packing, ship out
Color】Grey with red edge
Length】10CM/20CM/50CM/ customized

/  Product Process


A

Cutting Wire
1.wire gauge and size must be compliant to drawing.
2.Working table must be clean and no foreign material.
3.No color difference, no dirty or damage on the jacket.
4.No color difference in same lot cable.
5.Conductor must be in the middle of wire, insulation must be uniform.


B
Peeling Jacket
1.peeling size must be compliant to drawing.
2.Working table must be clean and no foreign material.
3.No dirty and damage on the jacket surface.

C
Crimping Terminal
1.Must use the right terminals compliant to BOM & drawing.
2.Crimping do not break the insulation.
3.Cover all the conductors well, not crimp the jack, and without deformation.
4.Pull force should be meet the demand.

D
Overmolding
1.Must use the right mold as request.
2.No gap, shrink, bulge or parti-colour.
3.No burr or lacking glue.
E
Electrical Testing
1.Testing as request of drawing.
2.Test the cables 100%.
3.To make sure all the cables no short or open circuit, no wrong wiring, and no insulated.

F
Final Inspection
1.Full inspection.
2.Inspecting as request of drawing.
3.Must be no dirty, no damage, or missing work.
/  Quality Assurance


insertion and extraction force testing
pull force testing
salty spray testing
swing testing
terminal section cross analysing
wiring checking
/  Packing


Wrap to small bundle

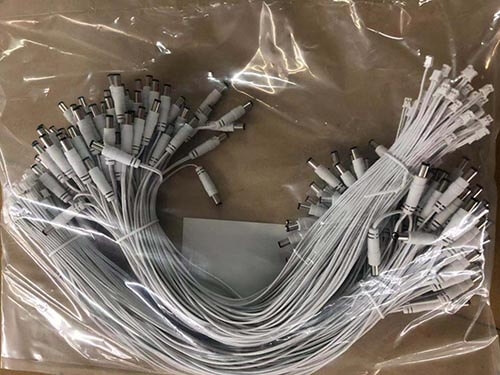

Put in PE bag

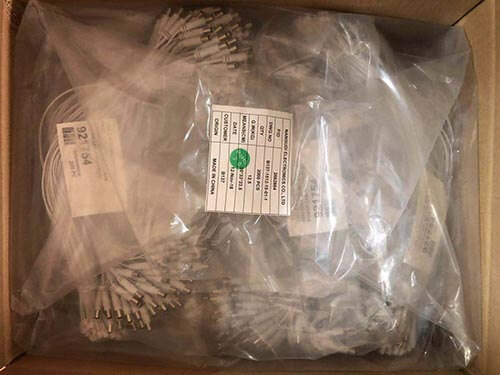

Seal in strong carton

/  certificate


/  Services


Quality Assurance

Customized

In-kind shooting

Logistics



We are experienced for arranging shipment to different countries'customers.

 All the cargoes under inspection before shipment!



Company Features
1. Focusing on the improvement of flat wire facilitates Nangudi to be more competitive in the market.
2. Nangudi Electronics Co., Ltd. has kept up with more advanced technology in manufacturing.
3. Nangudi Electronics Co., Ltd. regards usb c ribbon cable as its cardinal service tenet. Check now!
