Medical Electrical Wiring Harness | ISO 13485 Certified

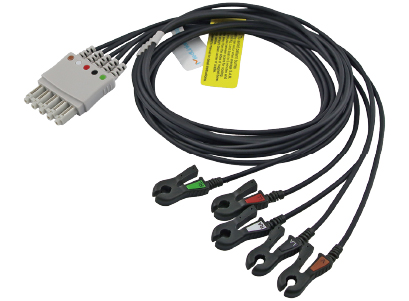

The medical device industry demands components that ensure patient safety, data accuracy, and long-term reliability. A medical electrical wiring harness is the central nervous system of any electronic medical device, transmitting signals and power critical for diagnosis, monitoring, and treatment. At Dongguan Nangu Di Electronics Co., Ltd., we have dedicated nearly two decades to mastering the art of custom wiring harness manufacturing, with a specific focus on medical applications. Our factory certified to ISO 13485 (Medical Devices Quality Management Systems) reflects our commitment to the highest standards of quality and safety. We understand that in healthcare, failure is not an option. Therefore, every medical electrical wiring harness we produce undergoes rigorous testing, including 100% continuity, hipot, and insulation resistance tests, to guarantee zero-defect delivery.
Our manufacturing process begins with precise wire selection and stripping, using automated machinery that ensures consistency and accuracy. We then move to crimping, where high-quality tin-plated copper conductors are terminated with precision connectors, typically 24P, 12P, or custom configurations. Soldering is done with controlled temperature stations to prevent heat damage, and all joints are inspected under magnification. We offer insulation options like PTFE, which provides excellent chemical resistance and high-temperature tolerance, and PVC, known for its flexibility and cost-effectiveness. For extreme applications, we also utilize silicone, which maintains performance from -40°C to 200°C.
Quality control is embedded in every step. Incoming materials are verified against strict specifications, and our suppliers are UL-recognized. During production, we employ statistical process control (SPC) to monitor critical parameters, and every operator is trained on IPC-A-620 standards. Our in-house testing laboratory is equipped with environmental chambers, vibration tables, and tensile testers to simulate real-world conditions. With a 98% product qualified rate and a 0.1% customer return rate, our track record speaks for itself.
We also prioritize customization. Our R&D team of 35 engineers collaborates closely with clients to design harnesses that meet specific electrical requirements, such as voltage ratings up to 300V, and mechanical needs, such as bend radius and strain relief. We have produced harnesses for a wide range of medical devices, including infusion pumps, ventilators, and MRI systems. For instance, our harnesses with 28P connectors and high-density wiring are used in portable diagnostic devices, where space is at a premium. By leveraging our 40+ patents and deep industry knowledge, we ensure that our medical electrical wiring harnesses not only meet but exceed expectations.
Our global footprint includes clients in Europe, North America, and Asia. We understand the importance of on-time delivery, so we maintain a production capacity of 100,000 meters per day. With two production bases in Humen, measuring 12,000 square meters, we can scale to meet high-volume demands without compromising quality. Our logistics team ensures that shipments are carefully packed and delivered according to your schedule. Whether you need a prototype or mass production, we offer fast turnaround times; for example, prototypes are often completed within 48 hours.
In conclusion, choosing the right partner for medical electrical wiring harness is critical. Our ISO 13485 certification, combined with our technical expertise, manufacturing excellence, and unwavering commitment to quality, makes us the ideal choice. We invite you to experience the reliability and performance of our medical electrical wiring harnesses, which have been trusted by global medical device manufacturers for over a decade. Contact us today to discuss your requirements and let us provide a solution that safeguards lives and advances healthcare.
