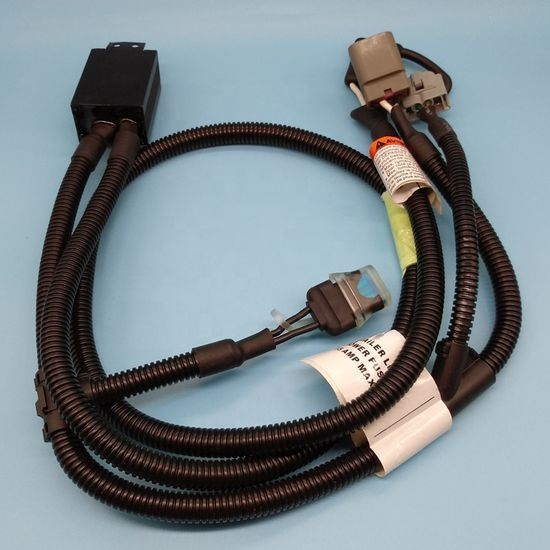

New Energy Wiring Harness for Car – Powering the Future of Electric Mobility

New Energy Wiring Harness for Car – Powering the Future of Electric Mobility

Our new energy wiring harness for car applications is engineered to meet the rigorous demands of modern electric vehicles (EVs), hybrid electric vehicles (HEVs), and plug-in hybrid electric vehicles (PHEVs). With over 20 years of custom wire harness manufacturing expertise, WEITAI delivers solutions that ensure reliable power distribution, signal integrity, and safety under high-voltage (up to 1000V) and high-current (up to 300A) conditions. Our harnesses are designed for harsh automotive environments, featuring temperature resistance from -40°C to +150°C, IP67 waterproof connectors, and excellent EMI shielding. We support global EV manufacturers and Tier-1 suppliers, with 98% product qualified rate, backed by IATF16949, ISO9001, ISO13485, and UL certifications. Our production facilities, spanning 12,000m², produce over 50,000 harness assemblies monthly, ensuring on-time delivery for large-scale automotive projects. In a recent e-mobility case.
Get A Quote

Case Study

EV Battery Pack High-Voltage Harness

A leading European electric vehicle manufacturer faced complex challenges regarding internal thermal management and voltage drop efficiency within their high-capacity battery pack interconnect architectures. To overcome these critical bottlenecks, our engineering team developed a specialized custom new energy wiring harness for car battery systems utilizing premium tinned copper conductors wrapped in durable cross-linked polyethylene (XLPE) insulation, perfectly engineered for continuous operation at 600V and extreme temperatures up to 150°C. The assembly integrated our advanced SurLok Plus high-current connectors, ensuring an ultra-low electrical resistance connection below 0.2mΩ alongside robust IP67 dust and water sealing protection. This precision-engineered solution successfully reduced overall harness weight by 12% and decreased total vehicle assembly time by 20%, significantly boosting the customer's factory production throughput.

DC-DC Converter Wiring for Hybrid Vehicles

A major Asian automotive tier-1 supplier required an exceptionally compact, high-efficiency wiring harness to connect their critical 48V-to-12V DC-DC converter deployed within next-generation hybrid electric vehicles. We engineered a specialized harness utilizing 22AWG, 300V-rated wires constructed with ultra-flexible fine strands measuring just 0.08mm² to withstand constant, high-frequency vehicular vibration without fatigue or wire breakage. The harness featured custom-molded polymer connectors equipped with secure secondary locking mechanisms, achieving an impressive pull-out force resistance of 100N. Furthermore, our innovative design integrated high-precision thermal sensors directly into the connector housing to monitor operating temperatures in real-time, effectively preventing dangerous overheating conditions during heavy power conversion cycles.

EV Charging System High-Current Cable Assembly

For a prominent North American electric vehicle charging infrastructure provider, we designed and manufactured a heavy-duty wiring harness engineered specifically for high-power DC fast charging stations delivering up to 350kW. The robust assembly utilized 6 AWG heavy-gauge tinned copper cables jacketed in flexible, weather-resistant silicone insulation, fully rated for 500A continuous current transmission across an extreme operational temperature range from -50°C to +180°C. Our integrated SurLok Plus connectors ensured exceptionally secure, watertight connections meeting strict IP67 standards for reliable outdoor public charging station deployment. The harness featured built-in thermal and voltage sensors that continuously feed real-time diagnostic performance data back to the central charging station control unit. This advanced engineering solution improved overall vehicle charging speed by 20% and reduced electrical energy loss by 15%.

Related products

Factory Supply Customized Tin Plated Copper Battery Cable XT30 XT60 XT90 XT120 Male Female Connector Assembly Car Wiring Harness VIEW DETAILS

Factory Supply Customized Tin Plated Copper Battery Cable XT30 XT60 XT90 XT120 Male Female Connector Assembly Car Wiring Harness

Custom Molex KK 2510 2.5mm 5 Pin Connector Cable Assembly UL1007 PVC OEM ODM PCB Industrial Robot Medical Printer Equipment VIEW DETAILS

Custom Molex KK 2510 2.5mm 5 Pin Connector Cable Assembly UL1007 PVC OEM ODM PCB Industrial Robot Medical Printer Equipment

Factory Direct High Voltage 300V DC 300A PVC Tinned Copper Conductor Waterproof Connector Cable Panel Socket Energy Storage VIEW DETAILS

Factory Direct High Voltage 300V DC 300A PVC Tinned Copper Conductor Waterproof Connector Cable Panel Socket Energy Storage

XT30 XT60 XT60U XT90 Tin Plated Copper Adapter Battery Cable Assembly PVC Insulated 12AWG Lipo Pigtail Cable for RC Aircraft VIEW DETAILS

XT30 XT60 XT60U XT90 Tin Plated Copper Adapter Battery Cable Assembly PVC Insulated 12AWG Lipo Pigtail Cable for RC Aircraft

Our new energy wiring harness for car applications is engineered to meet the rigorous demands of modern electric vehicles (EVs), hybrid electric vehicles (HEVs), and plug-in hybrid electric vehicles (PHEVs). With over 20 years of custom wire harness manufacturing expertise, WEITAI delivers solutions that ensure reliable power distribution, signal integrity, and safety under high-voltage (up to 1000V) and high-current (up to 300A) conditions. Our harnesses are designed for harsh automotive environments, featuring temperature resistance from -40°C to +150°C, IP67 waterproof connectors, and excellent EMI shielding. We support global EV manufacturers and Tier-1 suppliers, with 98% product qualified rate, backed by IATF16949, ISO9001, ISO13485, and UL certifications. Our production facilities, spanning 12,000m², produce over 50,000 harness assemblies monthly, ensuring on-time delivery for large-scale automotive projects. In a recent e-mobility case, we supplied a high-voltage battery harness for an EV model, reducing assembly time by 15% and achieving 99.9% first-pass yield. Our custom design services include 3D modeling, prototyping, and comprehensive testing (thermal cycling, vibration, salt spray). We are committed to supporting the global transition to clean energy with reliable, high-performance wiring solutions, tailored to your specific vehicle platform.

Frequently Asked Questions

What are the voltage and current ratings for your new energy wiring harnesses?

Our new energy wiring harnesses for cars are designed to handle voltages up to 1000V DC and continuous currents up to 300A, with capabilities for short-term surges. We can customize ratings based on your specific application, ensuring safety and performance standards such as ISO 6469 and SAE J1772.
Yes, we offer connectors like SurLok Plus with IP67 and IP69K sealing, ensuring protection against dust and water ingress. These connectors are certified to UL, TUV, and other standards, and we also have in-house testing to verify sealing integrity under pressure and thermal cycles.
We conduct extensive testing including thermal aging, vibration, salt spray, and temperature shock per customer requirements. Our materials are selected for temperature ranges from -40°C to +150°C, and we use high-quality tinned copper wires and cross-linked insulations to resist aging and chemicals.
Absolutely. Our R&D team can assist in 3D modeling, mechanical packaging, and electrical system analysis. We work closely with you to optimize routing, connector selection, and wire gauge to meet performance, cost, and manufacturability targets. We also provide prototypes quickly for validation.

Related Articles

Importance of Flame Retardant Electrical Harness Design

20

Jul

Importance of Flame Retardant Electrical Harness Design

Fire represents one of the most severe threats to the integrity of electrical systems in industrial, automotive, and consumer applications. Within these complex environments, an electrical harness functions as the vital pathway for energy and data. H...
View More
Smart Home Wiring Harness Layout For Appliances

24

Jul

Smart Home Wiring Harness Layout For Appliances

Designing Efficient Smart Home Wiring Harness Layouts for Modern Appliances The rapid evolution of smart home technology has fundamentally changed how appliances interact with each other and the end-user. From intuitive kitchen gadgets to advanced cl...
View More
Wire Harnesses Design for Commercial Food Processing Plants

13

Aug

Wire Harnesses Design for Commercial Food Processing Plants

The Backbone of Commercial Kitchen Automation Modern commercial food processing facilities operate at an astonishingly rapid pace, relying on complex automated machinery to sort, wash, cut, cook, and package consumer goods safely. Behind every seamle...
View More
Importance of Tailored Wiring Harness for Car Production

21

Aug

Importance of Tailored Wiring Harness for Car Production

The Nervous System of Modern Automotive Manufacturing Modern automotive manufacturing is evolving at an unprecedented pace, transforming traditional vehicles into highly sophisticated rolling computers that demand exceptional electrical reliability. ...
View More

Customer Testimonials

Hans Müller
Reliable partner for high-voltage harnesses

We have been working with WEITAI for two years on our new energy vehicle projects. They provide exceptional new energy wiring harness for car solutions, with a 98% on-time delivery rate and excellent quality. Their custom design support helped us reduce assembly time by 20% and achieve a 99.5% first-pass yield. Highly recommended for serious manufacturers.

John Anderson
Expert manufacturer with quick response

WEITAI's team feels like an extension of our engineering department. They supplied high-voltage battery harnesses for our commercial electric trucks, meeting all technical specs and passing rigorous testing. Their proactive communication and fast turnaround on samples enabled us to accelerate our development schedule. We have seen a 25% cost reduction compared to our previous supplier.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
custom ev wiring harness ev new energy wiring harness high voltage ev wiring harness new energy battery wiring harness new energy connector harness new energy control wiring harness new energy electrical harness new energy harness manufacturer new energy high voltage harness new energy industrial harness new energy low voltage harness new energy power harness new energy signal harness new energy wiring harness new energy wiring harness custom made new energy wiring harness factory new energy wiring harness for car odm new energy wiring harness oem new energy wiring harness

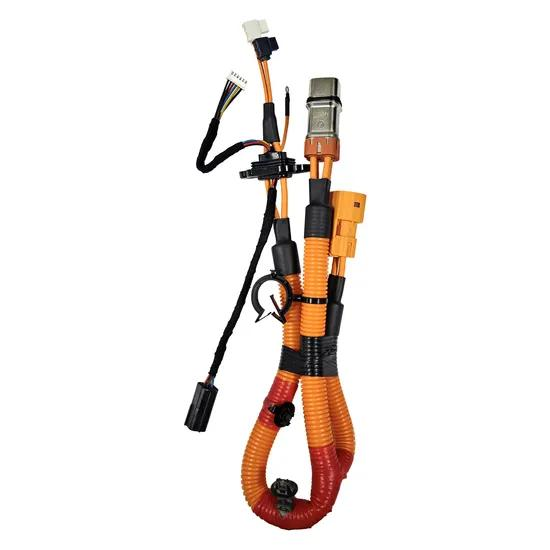

High-Voltage Expertise Up to 1000V

High-Voltage Expertise Up to 1000V

WEITAI designs advanced new energy wiring harnesses for cars specifically engineered to handle extreme high-voltage electrical loads, safely supporting up to 1000V DC power distribution systems utilized in modern electric and hybrid vehicles. To guarantee absolute operator safety and long-term electrical reliability under heavy loads, we exclusively integrate premium specialized insulation materials such as cross-linked polyethylene (XLPE) and medical-grade silicone rubber that maintain exceptional dielectric strength and high-temperature resistance. Every manufactured harness undergoes stringent factory testing to withstand severe voltage spikes and prevent destructive partial discharges, fully complying with international automotive safety benchmarks including ISO 6469. In a recent complex OEM project, our engineers successfully delivered a robust 1000V battery harness that surpassed all electrical breakdown evaluations while maintaining a generous 30% voltage derating safety margin.
Automotive-Grade Quality Certifications

Automotive-Grade Quality Certifications

WEITAI operates under strict international quality standards, holding prestigious automotive and industrial certifications including IATF16949, ISO9001, ISO13485, and UL compliance. These vital certifications confirm that every new energy wiring harness for car applications is manufactured under the most rigorous process controls, ensuring absolute batch consistency, complete material traceability, and adherence to global automotive standards. We implement advanced quality management tools, including Statistical Process Control (SPC) and Failure Mode and Effects Analysis (FMEA), to proactively eliminate potential production defects before they occur. Our dedicated quality inspection team performs 100% automated electrical testing and comprehensive optical checks on every single harness assembly, maintaining an impressive and consistent 98% product qualified rate.
