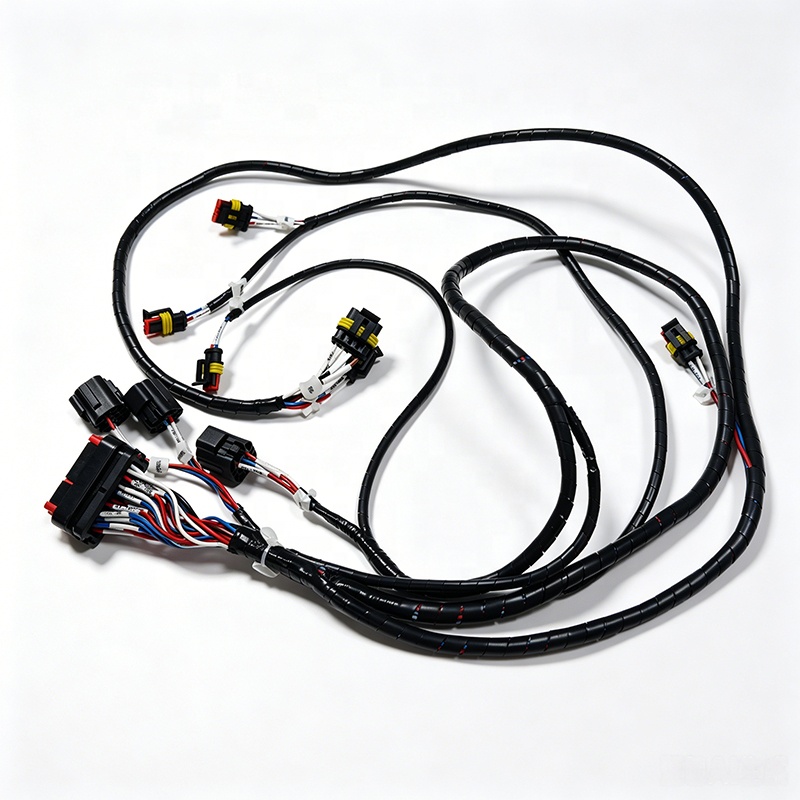

Electrical Wiring Harnesses: Precision-Engineered Custom Solutions for Global Industries

Electrical Wiring Harnesses: Precision-Engineered Custom Solutions for Global Industries

As a national high-tech enterprise and specialized "Little Giant" in Guangdong, we deliver electrical wiring harnesses that redefine reliability and performance. With nearly 20 years of expertise and 12000 m² of owned factory space, our two production bases in Humen, Dongguan, are equipped to handle custom R&D and mass production with ISO9001, ISO13485, IATF16949, and UL certifications. Our 350+ professional staff, including 35 R&D engineers, ensure every harness meets rigorous standards, achieving a 98% product qualified rate. We serve the new energy, medical, and automotive sectors with tailored solutions, such as high-voltage harnesses for EV battery systems (up to 1000V/300A) and medical-grade cable assemblies with PTFE/PVC insulation. Our in-house testing and 40+ patents guarantee performance in demanding environments, from surgical equipment to solar inverters. With a 24-hour rapid quoting system and sample delivery within 48 hours, we accelerate your time-to-market.
Get A Quote

Case Study

EV Battery Harness for a European Automotive Leader

A prominent European electric vehicle manufacturer required a highly specialized, ultra-reliable high-voltage electrical wiring harness for their next-generation vehicle battery packs, demanding a robust 200A/1000V operational capability combined with an exceptionally compact physical layout. To meet these stringent performance parameters, our dedicated engineering team developed a custom SurLok Plus harness featuring precision 0.8mm crimping and pure tin-plated copper conductors designed to maximize electrical conductivity and minimize thermal losses under heavy loads. Furthermore, our R&D specialists meticulously optimized the physical wire routing and shielding architecture to mitigate severe electromagnetic interference (EMI) across surrounding vehicle systems, ensuring complete signal integrity. The prototype assemblies successfully endured grueling 500-hour thermal cycling tests under aggressive temperature fluctuations.

Medical Device Cables for a Top-Tier Hospital Supplier

A leading United States medical device enterprise faced persistent challenges regarding signal integrity and data transmission stability within their advanced smart home patient monitoring equipment. Our technical team engineered a sophisticated 24P connector electrical wiring harness assembly utilizing premium medical-grade PTFE insulation, which successfully ensured extremely low electrical capacitance and reliable high-speed data transmission during critical care diagnostics. Operating strictly within our certified manufacturing environment, our production lines performed mandatory 100% automated electrical testing and rigorous insulation resistance checks on every single manufactured unit. The final cable assembly achieved an extraordinary 99.9% initial pass rate, effectively eliminating signal degradation and reducing potential patient monitoring errors in clinical practice.

Renewable Energy Solar Harness for a Utility-Scale Project

A major utility-scale solar farm developer operating in Australia encountered frequent electrical connector failures and system disruptions caused by prolonged exposure to harsh ultraviolet radiation, extreme ambient temperature swings, and severe moisture ingress. We engineered and supplied a robust, customized solar photovoltaic electrical wiring harness featuring UL11267-compliant wiring integrated with durable SC70-8 copper lugs, completely protected by specially formulated UV-stabilized PVC insulation jackets. This advanced design was specifically structured to withstand continuous mechanical stress and severe weathering in open-field renewable energy installations. Following deployment, the solar facility experienced a dramatic 60% reduction in unexpected system downtime while maintenance operating costs dropped by 30%. Furthermore, the project's first-year energy generation output exceeded initial technical projections by 15%.

Related products

Molex KK 396 JST Xh 3.96mm Pitch Cable Assembly VH3.96 Housing With 2 3 4 Pin Wire Harness for Electronics VIEW DETAILS

Molex KK 396 JST Xh 3.96mm Pitch Cable Assembly VH3.96 Housing With 2 3 4 Pin Wire Harness for Electronics

Professional Cable Manufacturer Customized Production All Kinds Equipment Wires Cables Wire Assembly VIEW DETAILS

Professional Cable Manufacturer Customized Production All Kinds Equipment Wires Cables Wire Assembly

Custom Molex KK 2510 2.5mm 5 Pin Connector Cable Assembly UL1007 PVC OEM ODM PCB Industrial Robot Medical Printer Equipment VIEW DETAILS

Custom Molex KK 2510 2.5mm 5 Pin Connector Cable Assembly UL1007 PVC OEM ODM PCB Industrial Robot Medical Printer Equipment

CEE 32A 3Pin Female Socket Power Cord H07RN-F Neoprene 3*6mm² Cable with Ring Terminal or Open End VIEW DETAILS

CEE 32A 3Pin Female Socket Power Cord H07RN-F Neoprene 3*6mm² Cable with Ring Terminal or Open End

In the realm of electrical wiring harnesses, precision and durability are paramount. At Dongguan Nangu Di Electronics Co., Ltd., we have honed our craft for nearly two decades, becoming a trusted partner for industries that demand uncompromising quality. Our company, founded in 2006, stands as a national high-tech enterprise and a "Little Giant" in Guangdong Province—a testament to our innovative spirit and specialized expertise.

Our production capabilities span 12,000 square meters across two facilities in Humen, Dongguan. This substantial infrastructure allows us to maintain strict control over every step of the manufacturing process. From wire cutting, stripping, and crimping to molding, assembly, and testing, our skilled team of 316 professionals ensures each harness meets the highest standards.

Frequently Asked Questions

What materials are used in your electrical wiring harnesses to ensure durability?

We use high-quality copper conductors, typically pure tin-plated copper for excellent conductivity and corrosion resistance. Insulation includes PVC, PTFE, and XLPE depending on the application. For harsh environments, we offer Neoprene and cross-linked polyethylene. All materials are RoHS compliant and UL rated. Our harnesses are tested for temperature ranges from -40°C to 125°C, ensuring longevity and reliability.
Absolutely. We specialize in custom lightweight harnesses. You can specify any wire gauge, length, and connector type. Our R&D team will assist in selecting the best components, including Molex, JST, or custom connectors. We offer quick turnaround samples within 72 hours for your approval before mass production.
Our factory is ISO9001:2015 certified for quality management, IATF16949 for automotive standards, ISO13485 for medical devices, and our products carry UL certification. These certifications guarantee consistent quality and traceability. We also conduct 100% electrical testing and regular reliability tests such as vibration and salt spray.
We maintain a well-organized production schedule and have two production bases in Dongguan, covering 12,000 m². Our average lead time for standard products is 15-20 days; for complex custom harnesses, it may take 25-30 days. We use a real-time tracking system and provide regular updates. Over the past three years, our on-time delivery rate has been 98.5%.

Related Articles

Importance of Pinout Accuracy in Wire harness assembly

17

Jul

Importance of Pinout Accuracy in Wire harness assembly

The Critical Importance of Pinout Accuracy in Wire Harness Assembly In the complex world of modern electronics, a wire harness assembly serves as the foundational communication and power distribution network for machinery, vehicles, and industrial eq...
View More
What Industries Need a Custom Wiring Harness for Systems?

10

Aug

What Industries Need a Custom Wiring Harness for Systems?

Navigating the Shift Toward Bespoke Electrical Architecture Modern industrial landscapes are evolving at a breathtaking pace, requiring electrical distribution networks that can withstand extraordinary physical and thermal demands across every challe...
View More
Benefits of Centralized Smart Home Wiring Harness Frameworks

17

Aug

Benefits of Centralized Smart Home Wiring Harness Frameworks

The Evolution of Residential Smart Infrastructure Modern residential properties are transforming at a breathtaking pace, shifting from passive living spaces into highly integrated ecosystems powered by the Internet of Things. Homeowners increasingly ...
View More
Importance of Tailored Wiring Harness for Car Production

21

Aug

Importance of Tailored Wiring Harness for Car Production

The Nervous System of Modern Automotive Manufacturing Modern automotive manufacturing is evolving at an unprecedented pace, transforming traditional vehicles into highly sophisticated rolling computers that demand exceptional electrical reliability. ...
View More

Customer Testimonials

Hans Müller
Exceptional Quality and Service

As an engineering manager at a German EV startup, we needed reliable high-voltage harnesses. Nangu Di delivered exactly as promised. Their 300A/1000V harnesses have never failed in our systems. The 98% qualified rate speaks volumes. Their team's attention to detail and fast prototyping helped us meet launch deadlines. Highly recommended for any automotive wiring needs.

Susan Lee
Trusted Partner for Medical Device Manufacturing

We've been sourcing medical-grade wire harnesses from Nangu Di for over five years. Their ISO13485 compliance and rigorous testing ensure our devices function flawlessly. Their customer service is proactive, and their after-sales support is outstanding. We achieved a 40% reduction in production defects thanks to their high-quality assemblies. They are an integral part of our supply chain.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
auto electrical harness electrical harness assembly electrical wiring harnesses automotive wire harness suppliers wiring harness cable coil harness waterproof wire loom electronic wire harness

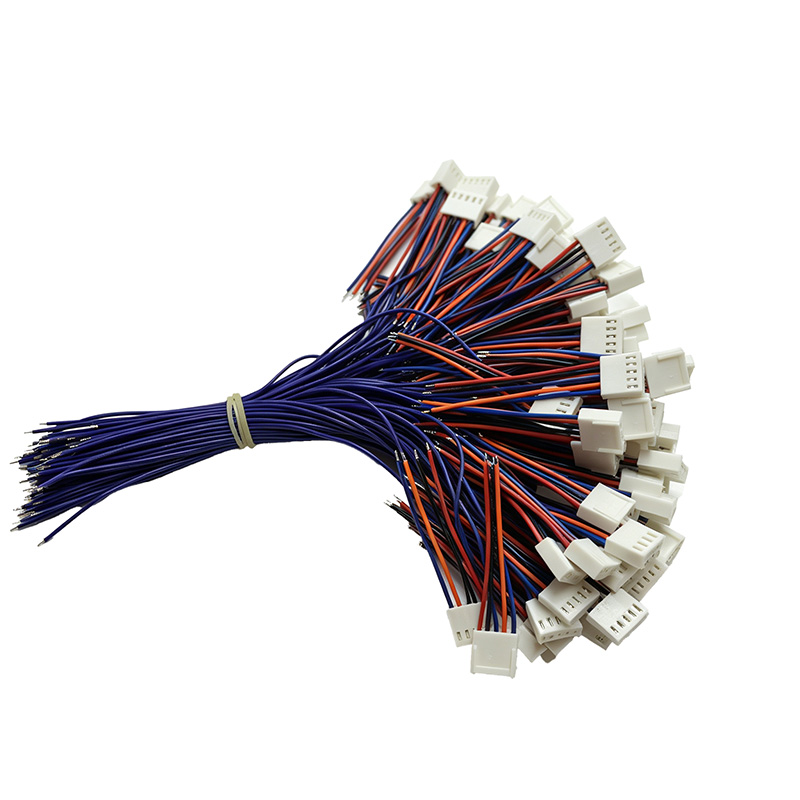

Precision Engineering Backed by 40+ Patents

Precision Engineering Backed by 40+ Patents

Continuous technological innovation serves as the fundamental driving engine behind our ongoing corporate success and industry leadership. Backed by a robust intellectual property portfolio comprising over 40 registered utility and design patents spanning advanced electrical harness architecture, proprietary connector geometry, and specialized manufacturing methodologies, our technical team continually pushes the boundaries of product performance and long-term operational reliability. For instance, we have pioneered unique physical wire twisting and shielding techniques that substantially minimize destructive electromagnetic interference (EMI) across sensitive communication circuits in mission-critical applications. These engineering innovations translate into tangible, measurable operational advantages for our international clients.

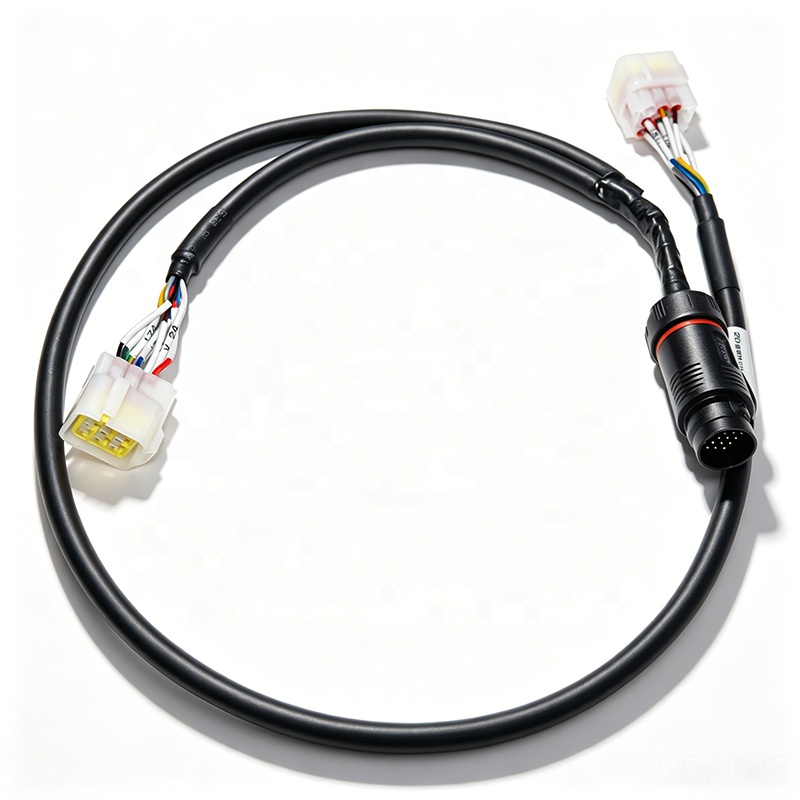

Agility and Speed: From Quote to Delivery

Agility and Speed: From Quote to Delivery

We thoroughly understand that in today's fiercely competitive commercial marketplace, operational speed and rapid time-to-market represent vital keys to achieving sustained business success. To address this critical requirement, we have comprehensively optimized our entire operational workflow—from initial inquiry to final international shipment—to dramatically accelerate project turnaround times. Our streamlined one-stop service model empowers clients to receive a comprehensive, detailed engineering quotation within just 4 hours of request submission. Once design parameters are approved by the client, our agile prototyping infrastructure enables us to manufacture and dispatch fully functional physical samples in as little as 72 hours.
